Passive Current transformer Series IB
Current transformers for printed-circuit boards
Data sheet
All data and configurations can be found in our product data sheet.
Certifications
Passive Current transformer Series IB
Current transformers for printed-circuit boards
Description
REO current transformers series IB are suitable for mounting on printed-circuit boards in the electric range of modern drive engineering for control purposes and measurement value logging. All safety regulations as for example double insulation are obtained.
Advantages
- Low space requirement
- Suitable for PCB mounting
- Conforms to UL 94 V0

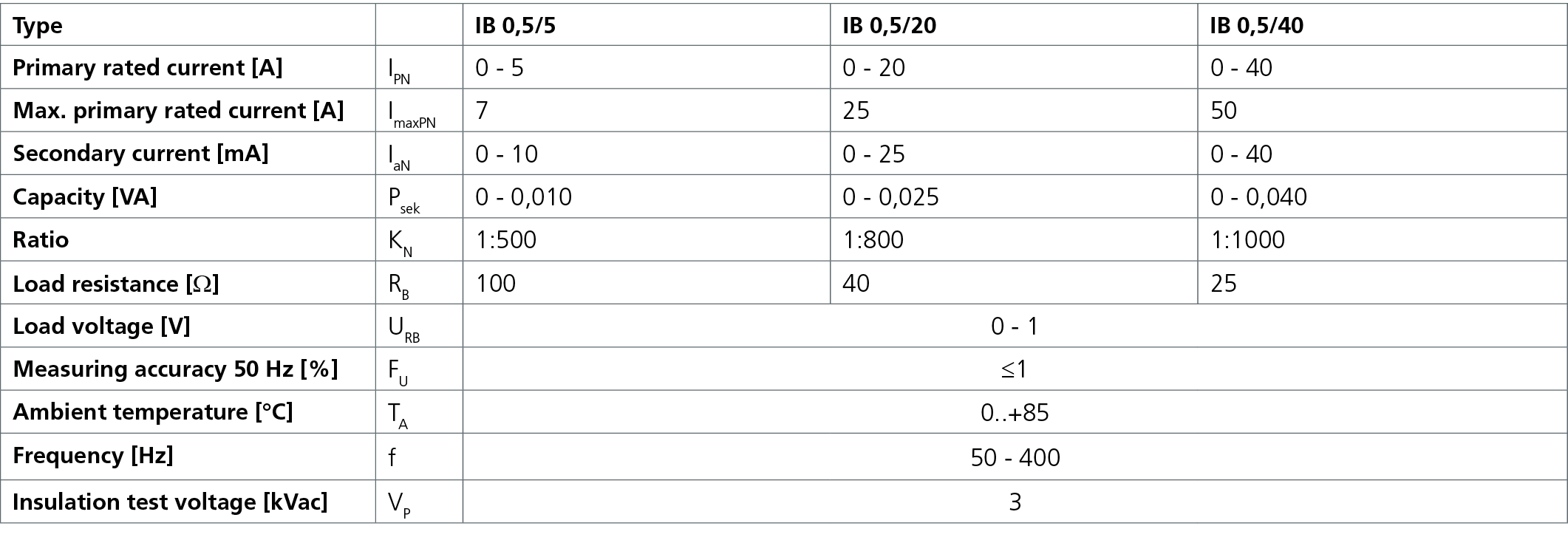

Technical specifications

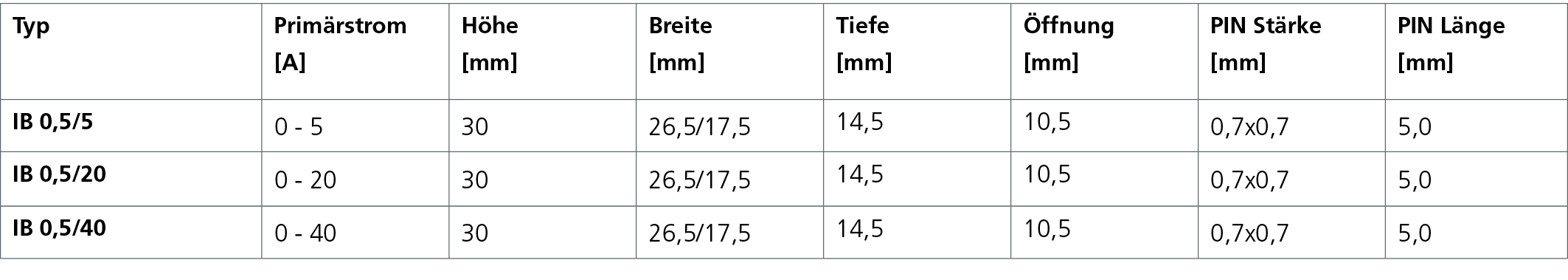

Dimensions in mm
